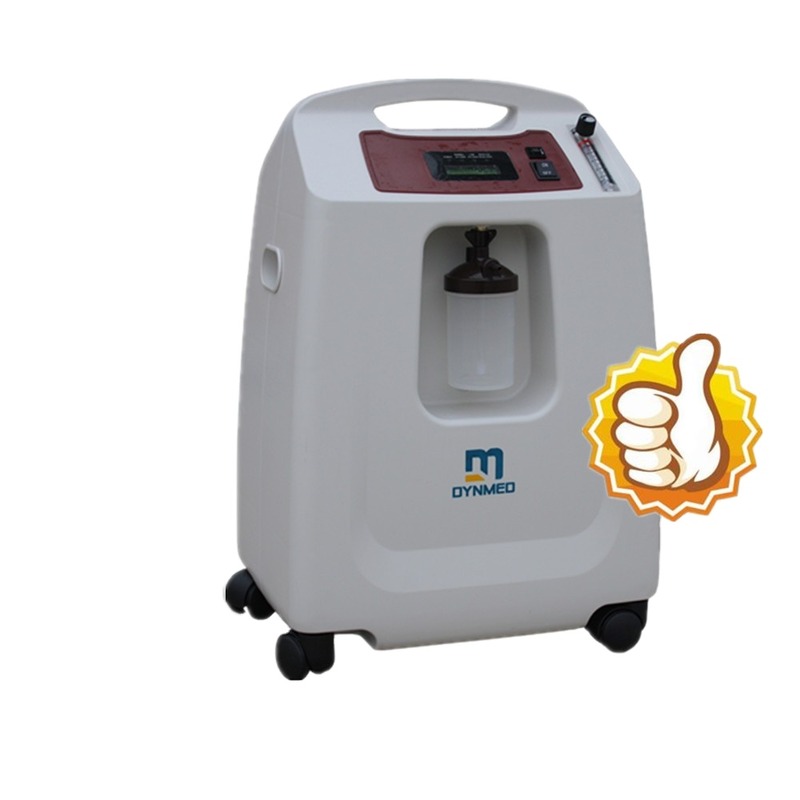

New Durable Professional Medical Equipment Oxygen Concentrator 8L 50x37x71cm

50 Units
MOQ
$400.00(50 - 99 Units) $398.00(>=100 Units)
Price
New Durable Professional Medical Equipment Oxygen Concentrator 8L 50x37x71cm
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: DO2-5AH
Instrument Classification: Class II
Warranty: Lifetime, 2 Years Assurance
After-sale Service: Onsite Training
Product Name: Durable New Professional Medical Equipment Oxygen Concentrator 8L
Keywords: Medical Device Oxygen Concentrator
Concentration: 93%±3%
Operation Noise: <45dB
Net Weight: 35lbs (15.9 Kg)
Power Consumption: <320 Watts
Output Pressure: 58.6±6KPa
Dimensions: 43 X 32 X 62 Cm
Caton Size: 50x37x71 Cm
Basic Infomation
Model Number: DO2-5AH
Payment & Shipping Terms
Product Description
Product Description

Durable domestic new professional medical equipment oxygen concentrator


Super September Purchasing Recommend model:

Healthcare Oxygen Concentrator 8LPM, DO2-8AH.

Product Application

Today, many people suffer from heart, lung, and other respiratory diseases. Most of these people can be benefited from supplemental oxygen therapy. Supplemental oxygen will increase the amount of oxygen that your body receives. Your physician prescribed a specific oxygen flow to improve symptoms such as headaches, drowsiness, confusion, fatigue, or increased irritability. If these symptoms persist after you begin your supplemental oxygen program, consult your physician.

DYNMED healthcare oxygen concentrator is applicable for above instructions. The product requires very few maintenance among their lifetime. All inner components are modular design, very easy to be maintained by general persons. The work performance are very steadily.

SPECIFICATIONS FOR DYNMED 5L OXYGEN CONCENTRATOR
Main performance parameters
Oxygen flow:
1--8LPM
in any setting of 1 to 8ltr
Oxygen purity:
93%±3%
below 2000m
Oxygen Output pressure:
0.05-0.07Mpa
/

Visible & audible parameters
Operation noise(dB)
<45dB(A)
/
Net weight:
19.5 kg
/
Package Dimensions :
50 x 37 x 71 cm
(L×W×H)

Work condition
Power Supply:
AC 220V±22V/50Hz
or 110V±10V /60Hz
Power consumption:
540VA
/
Operating temp:
5°C--40°C

Accessories

Included

Included

Optional

humidifier with connector
bacteria filter
low oxygen alarm
nasal cannula 1.8m and 3m
air inlet filter
nebulizer
user´s manual
coarse filter
splitter

Main Features

1). modular components set up

2). easily accessible filter and humidifier

3). 72 degree ramp– interface

4). modern design and simple operation

5). new, innovative measuring sensor

6). sensitive flow adjustment

7). 2 years warranty for all functional parts

8). whisper silent

9). microprocessor-controlled

10). favourable price

11). Made in Jiangsu, China (near to Shanghai)
Detailed Images

Machine Parts

Name: 4 Safety Alarm Systems

Power: Turn on the unit

Normal Oxygen: the unit running normally

Low Oxygen: Oxygen concentration is lower than 82%

Service Required: the unit faulty

Machine Parts

Name: LCD Display

Normal: the unit running is good, but when oxygen concentration is low, it shows "low oxygen"

Total: the calculated total run hours

Machine Parts

Name: Master Board
highly Integrated control, made in Europe

Machine Parts

Name: Oxygen Sensor

Ulstrasonic type, more sensitive, made in USA

Machine Parts.

Name: Solenoid Valve

Made by alloy metal, more reliable

Machine Parts

Name: Filters

Made by Ceramic Fiber Paper, with more filtering layers

Made by GVS Group (Italy)

Machine Parts.

Name: Zeolite Molecular Sieve

Made by lithium molecular sieve, more efficient and reliable, made in USA

Machine Parts.

Name: Oil Free Piston Compressor

Use the most relible compressor in China
Offer 5 years warranty.

Machine Parts.

Name: Cooling Fans
The unit uses two cooling fans to make sure low temperature inside the machine. And thus protect the machine from over heated.

This is also a special design of DYNMED.

Machine Parts

Name: Packaging

1- product net weight is 15.9kg only

2- box size(LxWxH) is 50x37x71 cm only

3- box material: 10mm corrugated kraft paper

This 5L unit has almost the lightest net weight, the box size is one of the most perfect one compare to other China suppliers. And the box material is the most thick, strong one around the world.
No shipping damaged issue in past 5 years.

Company Information
Our Service
Packing & Delivery
Packaging - one box
Size
50 (L) * 37 (W) * 71 (H) cm
Weight
19.6 kg



Packaging Details
The normal package is corrugated kraft paper box. If it is shipped with single box (no need pallet),we will use pe film for packing or pack it according to customers special request.
Packaging - one full pallet
Size
110 (L) * 100 (W) * 155 (H) cm
Weight
250 kg



Packaging Details

The normal package of bulk quantity cargos is wooden pallet. One pallet can load 12 units.

If export to oversea countries,the wooden pallet will be fumigated. And we will use pe film for packing or pack it according to customers special request.

Packaging - one full container
Size

20' or 40'

Packaging details

One full 20'container can load max 210 units, one full 40' container can load max 410 units.
Usually we won't pallet or pre film the cargos in order to load the quantity goods. But we will pack it if customers have special request.
