Factory Mini Liquid Nitrogen Generator 99.999% Purity Nitrogen Generator High Level Liquid Nitrogen Generator

1.0 set
MOQ
Factory Mini Liquid Nitrogen Generator 99.999% Purity Nitrogen Generator High Level Liquid Nitrogen Generator
Features Gallery Product Description Request A Quote
Features
Specifications
Applicable Industries: Manufacturing Plant, Food & Beverage Factory, Farms, Food & Beverage Shops, Laboratory
Showroom Location: Pakistan
Condition: New
Usage: Nitrogen
Production Rate: 100%
Voltage: 220v/380v/50-60hz
Weight: 10000 KG
Dimension(L*W*H): Actual Size
Warranty: 1 Year
Key Selling Points: Automatic
Marketing Type: New Product 2020
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year
Core Components: Pressure Vessel
After-sales Service Provided: Engineers Available To Service Machinery Overseas
Capacity: 3-50L/h
Purity: 95%-99.9995%
Pressure: 0.1~0.8Mpa
Dew Point: ≤-40℃
Material: CECA (France)
PLC: SIEMENS
Absorption Column: ZEOCHEM (USA) YS-13X-HP Molecular Sieve,life Time≥10 Years
Pneumatic Valve: Miga (TaiwSAan) Bray(U)/Gemu(Germany) VaLife Time:1,500,000 Times
Local Service Location: Pakistan
Basic Infomation
Payment & Shipping Terms
Packaging Details: Sea worth standard package
Supply Ability: 10 Set/Sets per Quarter
Product Description
Specification of liquid nitrogen generator
Mixed-refrigerant Joule-Thomson (MRJT) refrigerator at low temperature ranges driven by single compressor with precooling is applied to liquefy nitrogen (-180℃) for Nitrogen Liquefier from TIPC, CAS. MRJT, a Joule-Thomson cycle based on reoccupation and multicomponent mixed-refrigerants through optimizing various refrigerants with different boiling points with a good match along with their respective efficient refrigeration temperature ranges, is an efficient refrigerator for the temperature range from -40 to -196℃. The feature of this product is as following: the available mature commercial compressors and heat exchanges, high liquefaction efficiency, high reliability, no maintenance and long life.

Applications

a. fish boat,hotel and food processing plant: food quick-freezing,Beverage processing
b. hospital and beauty salon:Liquid nitrogen refrigerating apparatus,Vaccine preservation
c. laboratory: transducer calibration,Specimen preservation
d. farm: Embryo freezing instrument,freezing spermatozoon

Principle of Operation

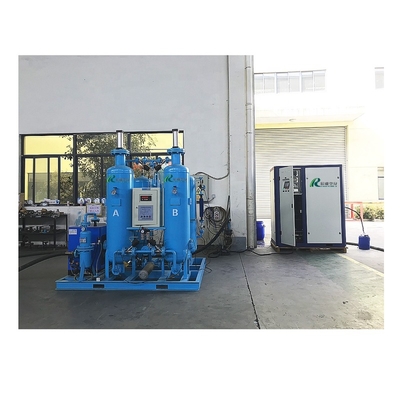

The oxygen and nitrogen generators are constructed according to the principle of operation P.S.A. (Pressure Swing Adsorption) and
are composed by a minimum of two absorbers filled up with molecular sieve.The absorbers are crossed alternatively by the
compressed air (previously purified in order to eliminate oil, humidity and powders) and produce nitrogen or oxygen. While a
container, crossed by the compressed air, produces gas, the other regenerates itself losing to pressure atmosphere the gases
previously adsorbed. The process comes repeated in cyclical way. The generators are managed by a PLC.
Process Flow Brief Description

Technical Features

1). Full Automation
All systems are designed for un-attended operation and automatic Nitrogen demand adjustment.
2). Lower Space Requirement
The design and Instrument makes the plant size very compact,assembly on skids,prefabricated from factory.
3). Fast Start-up
Start-up time is only 5 minutes to get desired Nitrogen purity.So these units can be switched ON&OFF as per Nitrogen demand
changes.
4). High Reliabiity
Very reliable for continuous and steady operation with constant Nitrogen purity.Plant availability time is better than 99% always.
5). Molecular Sieves life
Expected Molecular sieves life is around 15-years i.e. whole life time of nitrogen plant.So no replacement costs.
6). Adjustable
By altering flow,you can deliver nitrogen with precisely the right purity.
1. Are you manufacturer or Trade Company?
We are the manufacturer of Nitrogen Generator, founded in 2005
2. What's the order nitrogen generator process?
a. Inquiry---provide us all clear requirements.
b. Quotation---official quotation form with all clear specifications.
c. Contract confirmation---provide correct contract details.
d. Payment terms
e. Production
f. Shipping
g. Installation and commissioning
3.What terms of payment you use?
T/T, L/C etc.
4. How to get a prompt quotation of Nitrogen Generator?
When you send the inquiry to us, pls kindly send it with below technical information.
1) LN2 flow rate: _____Nm3/hr
2) LN2 purity: _____%
3) LN2 discharge pressure: _____Bar
4) Voltages and Frequency : ______V/PH/HZ
5) Application and Project Location:
