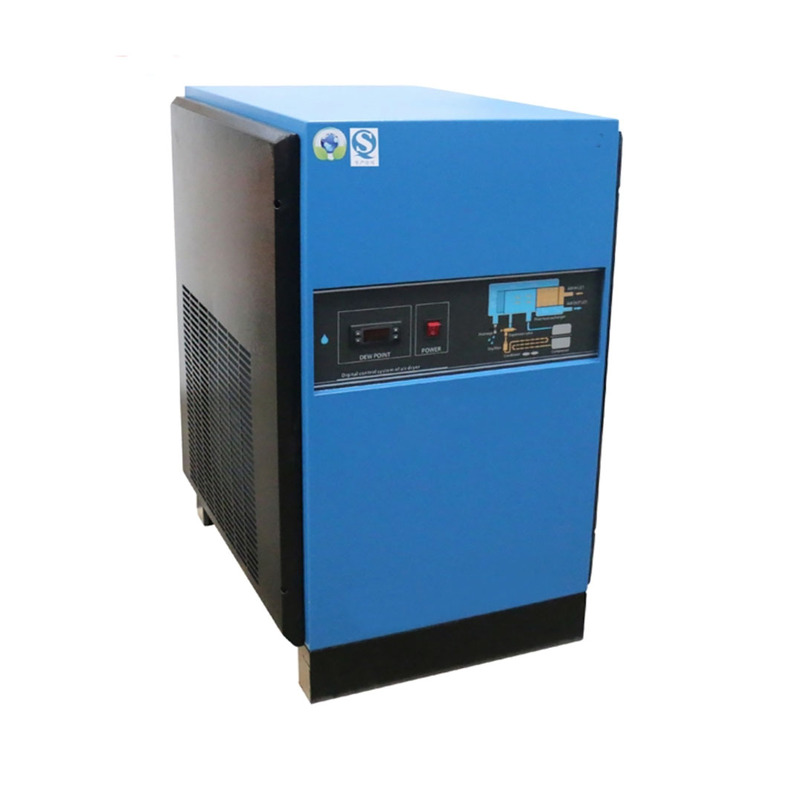

Medicine Curing Medium Pressure 8bar 16bar Screw Air Compressor REFRIGERATED AIR DRYER

1 Set
MOQ
$988.00(1 - 9 Sets) $498.00(>=10 Sets)
Price
Medicine Curing Medium Pressure 8bar 16bar Screw Air Compressor REFRIGERATED AIR DRYER
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Freeze Drying Equipment
Application: Medicine Processing, Chemicals Processing, Plastics Processing, Food Processing, Laser Cutting
Condition: New
Voltage: 220V/50Hz/1ph
Power: 75W
Dimension(L*W*H): 550*260*610mm
Key Selling Points: Sustainable
Warranty: 1 Year
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Bevera
After-sales Service Provided: Online Support, Video Technical Support, Field Installation, Commissioning And Training, Field Maintenance And Repair Service
Weight: 52KG
Certification: CE
Product Name: REFRIGERATED AIR DRYER
Model: KAD-1HA
Capacity: 1.2m3/min
Working Pressure: 8bar
Refrigerator Compressor Power: 1HP
Fan Power: 7.5W
Color: RAL1013
Outlet Pipe Dia: Rc1"
Keywords: Compressor Air Cooling Air Dryer
MOQ: 1set
Basic Infomation
Certification: CE
Model Number: KAD-1HA
Payment & Shipping Terms
Packaging Details: Simple package or wooden package.
Supply Ability: 800 Set/Sets per Month
Product Description
Product Description

middle pressure 8bar 16bar screw air compressor REFRIGERATED AIR DRYER

Air cooled refrigeration dryer
                      Model
Item   		EAD-5EAD-10EAD-15EAD-20EAD-30EAD-40EAD-50EAD-60EAD-75EAD-85EAD-100EAD-125EAD-150EAD-200
Air capacity(Nm3/min)0.81.351.72.63.85.27.28.51113.515.218.52230
Voltage(V/50Hz)220220220220220220220220380380380380380380
Comp-Power(KW)0.580.590.750.750.891.231.551.71.92.012.342.634.5
Fan Power(W)95959595150150150180180240240240240720
Inlet diaG1"G1"G1"G1-1/2"G1-1/2"G1-1/2"G1-1/2"G2"G2"G2"G2.5"DN65DN80DN100
Weight(kg)485265768296109127145176198210298420
SizeL(mm)650650700800900100010001120120013001450155016201860
W(mm)450450470500500520580580580620700700780850
H(mm)610620680620690730790790840870990107514101410





Packaging & Shipping







Company Information



KEEPWIN TECHNOLOGY HEBEI CO.,LTD is a good stable quality supplier in China compressor factory, located in Hebei Province  gas compressor manufacturing base and supplier of air gas system. The factory has advanced assembly, production line and testing equipment to support us to develop, design and Manufacture screw compressor, piston compressor, reciprocating compressor, diaphragm compressor, CNG compressor, CO2 compressor, Hydrogen compressor, Nitrogen booster compressor, etc that comply with the regulation of ISO9001:2008 quality system.


Keepwin gas compressor are widely used in each Industry, such as Oil Industry, Chemical, Electronic, Garment, Plastic, Glass, Cement, Water treatment, Agriculture, Food, Construction, Joinery, etc.

We view client satisfaction as the witness of our products' utility and application in all environments. In line with it, we have developed a general framework for comprehending new developments in the compressor industry.

Why Choose Us



Reliable and economical performance
Threaded pipelines of the heat exchanger increase the using rate of cooling air

The evaporator is made from laminose copper pipeline with aluminum flake, high efficiency, and low energy consumption
Condenser made from fin copper, good heat exchanging rate without freeze and jam

Environmental friendly
Aluminum-alloy-made heat exchangers never get rusted, strong anti-corrosion property, pollution reoccurrence free. Environmental cooling medium adopted across the series, keeping up with the international trends of environment protection

Top configuration
The whole series of refrigerated compressors are of first-class brands, such as PERFORMER, KERRY, COPELAND, and MANEUROP
Whole series of refrigeration control elements are of first-class brands, such as DANFOSS and ALCO
Whole series of air coolers adopt nanometer anti-corrosion coating on the surfaces

Total Control
Easy to use controller automatically manages dryer operation while monitoring critical parameters for optimum air treatment and efficiency

Flexible Design
Air-cooled and water-cooled options and compact size to fit any application Easy for installation and free maintenance



Related Products

FAQ



Q1:Are you the factory or trading company?

A4: Absolutely! You have touched the primary sources of Air /Gas Compressor FATORY founded in 2002.



Q2: What's your main products?
A: Screw Compressor, Natural Gas Compressor, LPG/CNG compressor, Hydrogen gas compressor, Oxygen gas compressor, CO2/ CO compressor, Methane Compressor, etc, the whole industrial / Petrochemical/ Oil field/ Medical hospital all kinds of high-pressure big capacity applications and related products.



Q3: How long is your gas compressor warranty?
A: Usually 1 year /12 Months for whole compressor machine, 2years/24months for air end (except maintenance spare parts.). And we can provide further warranty if necessary.

Q4: How long could your air compressor be used?
A: Generally, for all our gas compressor designed service life more than 25 years, with good regular maintenance.

Q5: Does your company accept customization?
A: Yes, of course. With rich experience doing ODM  customize compressor according to clients's  different detail using conditions. And sales team 24 hours on-line service available. 48hours problem solved promise.

Q6:  What's payment term?
A: T/T, L/C, D/P, Western Union, Paypal, Credit Card, Trade Assurance and etc. Also we could accept USD, RMB, GBP, Euro and other currency.

Q7: How about your after-sales service?
A: 1. Provide customers with intallation and commissioning online instructions.
2. Well-trained engineers available to overseas after-sales service.

Q8: Can we visit your factory?

A: Sure, welcome to visit our factory.
