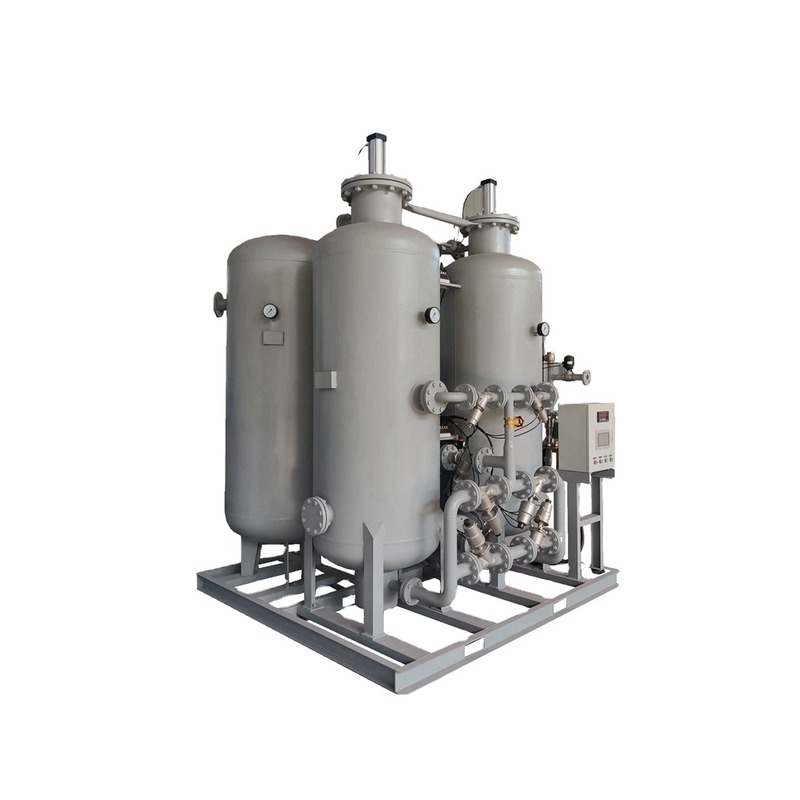

Fields PSA Nitrogen Generator Package System General Industrial Nitrogen Cylinder Gas Station

1.0 set
MOQ
Fields PSA Nitrogen Generator Package System General Industrial Nitrogen Cylinder Gas Station
Features Gallery Product Description Request A Quote
Features
Specifications
Applicable Industries: Food & Beverage Factory, Farms, Restaurant, Energy & Mining, Other
Showroom Location: Peru, India, Mexico, Russia, Kenya
Condition: New
Usage: Nitrogen
Production Rate: Capacity
Voltage: 110V/220V/380V/415V/customized
Weight: 3500 KG
Dimension(L*W*H): Capacity
Warranty: 1 Year
Key Selling Points: Automatic
Marketing Type: New Product 2020
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year
Core Components: PLC, Pressure Vessel, Motor
Product Name: PSA Nitrogen Generator
After-sales Service Provided: Video Technical Support Online Support
Application: General Industrial Fields
Technology: Pressure Swing Adsorbtion (PSA)
Keyword: Liquid Nitrogen Production Line
Purity: 99.9%-99.999%
Service Life: 10 Years Under Proper Maintenance
Type: Skid Mounted
Pressure: 0.3~0.8Mpa (adjustable)
Model: NZN
Basic Infomation
Model Number: NZN
Payment & Shipping Terms
Packaging Details: 1. Unit NZO series will packed with wooden case, anti-collision foam block, machine be packed by Stretch film, pearl cotton, according to the export packing standard. 2. Two sets machine delivery by unit 20 feet or 40 feet container, the booster will pack
Supply Ability: 100 Set/Sets per Month
Product Description
Products Description
Product Name
PSA Nitrogen Generator
Nitrogen Purity
95%—99.999%
Nitrogen Production
3—2000Nm3/h
Type
Skid Mounted & Container Type
Brand
NUZHUO
Model
NZN
Main Part
Air compressor，Compressed air purification system, Nitrogen generator, Filling station,etc
Application Field
Industrial use, Food protection, Medical treatment, Material processing, Scientific research and education, Biology, etc.

MODEL

NITROGEN PURITY

PRODUCTION (Nm3/h)

AIR CONSUMPTION ( Nm3/min)
NZN
99.5%
3 to 2500
0.25 to 115.62
NZN97
97%
10 to 2500
0.4 to 99.99
NZN99
99%
10 to 2500
0.45 to 101.52
NZN39
99.9%
3 to 1500
0.4 to 98
NZN49
99.99%
3 to 1000
0.5 to 91.30
NZN59
99.999%
3 to 300
0.78 to 49.32



Working Principle


Following the principle of pressure swing adsorption, high-quality carbon molecular sieve is used as the adsorbent. Under certain pressure, due to the dynamic effect, the diffusion rate of oxygen and nitrogen on the carbon molecular sieve is different. The oxygen molecules are adsorbed by the carbon molecular sieve in large quantities. Nitrogen molecules are enriched in the gas phase to achieve oxygen and nitrogen separation. Since the adsorption capacity of carbon molecular sieve for oxygen varies significantly with pressure, reducing the pressure can adsorb the oxygen molecules adsorbed by the carbon molecular sieve, so that the carbon molecular sieve can be regenerated and reused. Two adsorption tower processes are adopted, one is for adsorption and nitrogen production, and the other is for desorption and regeneration, alternating cycles and continuous production of high-quality nitrogen.
Flow Chart
No
MAIN PART
FUNCTION
1
Air compressor
 Air is used as raw material to collect & compress air to 8 bar, (Screw type)


2

Refrigerated dryer
The standard configuration removes moisture and impurities in the air, so that the air dew point reaches -20°C (the intermediate configuration uses an adsorption dryer, and the dew point reaches -40°C; the advanced configuration uses a combined dryer, and the dew point reaches- 60℃).
3
Precision Filter
A/T/C three-stage filter to remove oil, dust and impurities.
4
Air buffer tank
Store pure and dry air for subsequent adsorption and separation of oxygen and nitrogen as raw material storage.
5
Adsorption tower
A&B adsorption tower can work alternately, regenerating adsorption, filling sodium molecular sieve to filter out oxygen molecules.
6
Analyzer
Real-time monitoring and analysis of oxygen & nitrogen purity, indicating that the equipment is working normally and alarming.
7
Valves & pipelines
Intelligent control valves realize automatic operation of equipment, PLC control, SUS304 pipelines.
8
Gas Buffer Tank
Store oxygen & nitrogen with qualified purity, which can be directly piped or used for bottle filling.
9
Pressure regulator
Adjust and temperature the outlet pressure of oxygen & nitrogen (3-6 Bar).
10
Dust filter
Remove the dust brought by molecular sieve in oxygen & nitrogen
11
Check valve
Prevent oxygen & nitrogen back flow
12
Gas Booster
Pressurize the oxygen&nitrogen to the filling pressure, generally 150bar or 200bar.
13
Filling Manifold
Split high-pressure oxygen & nitrogen into each gas cylinder


Technical features

* Intelligent soft cycle switching, purity and flow can be adjusted within a certain range.
* All relevant system components are reasonably configured and the failure rate is low.
* Reasonable internal components, uniform airflow distribution, reduce the impact of high-speedairflow.
* Perfect process design, optimal use effect.
* Unique molecular sieve protection measures extend the service life of Zeolite molecular sieve(carbon molecular sieve).
* The intelligent interlocking unqualified oxygen (nitrogen) emptying device guarantees the oxygen (nitrogen) quality of the product.
* Optional oxygen (nitrogen) device flow, automatic purity adjustment system, remote control system
* The whole machine leaves the factory, and there is no basic device indoors.
* Convenient installation of matching pipes.
* The operation is simple and stable, and full automation, which can realize unmanned operation.
Contact :Anna Mail：anna.chou@hznuzhuo.com
Tel/WhatsApp/Wechat：0086-18758589723
Details Images
Customer Photos
NZ0-30, NZO-60 PSA OXYGEN PLANT EXPORTED TO MYANMAR IN AUG – NUZHUO
The PSA oxygen generator plant with 30nm3 production, oxygen purity with 93-95%, the local government come to inspect our equipment operation and oxygen quality etc, until now our company have sold around 80 sets oxygen plant to Myanmar, and cryogenic oxygen production line, with 99.6% oxygen purity, for filling cylinder or pipeline to hospital use.
THE MAX CAPACITY NZO-200 PSA OXYGEN GENERATOR FOR COMBUSTION-SUPPORTING
PSA oxygen generator meets the requirement of industrial, this 200Nm3/h machine use to producing oxygen for combustion, and this model is the max capacity for this type. Also PSA oxygen plant used for the medical hospital f we have exported to many countries, #Myanmar, #India, #Peru, #Russia, etc. Which support to connect to hospital oxygen tube directly, as well as filling into cylinders( we will supply filling station for you).
TWELVE SETS NZO-20 PSA OXYGEN  PLANT, 5L/H SMALL LIQUID NITROGEN EXPORT TO PERU IN MAR
NZO-20 model oxygen generator equipped with heatless compressed adsorption dryer and refrigerated dryer whose dew point can be -60 degree C , Altas brand air compressor, duplex skid mounted type.

Another clients looking for small liquid nitrogen generator for embryo sperm culture, laser cutting, food preservation.
CRYOGENIC OXYGEN AND NITROGEN PLANT - SEPARATION TOWER- NZDON-50-50 TO RUSSIA, KENYA
Specification: Producing 50Nm3/h oxygen with ≥99% purity and 50Nm3/h nitrogen with 99.99% purity.

Scope of supply: Air compressor system, Pre-cooling system, Air purification system, Fractionating column system ( cold box ), Turbo expander system, Filling system, Instrument and electric control system, Drawing design, etc
Recommend Products

PSA OXYGEN GENERATOR
Following the principle of pressure swing adsorption zeolite molecular sieve is used as the adsorbent. A full set PSA oxygen plant consists of 5 parts. Fresh air as raw material, passing through air compressor abtain 5-10 Bar compressed air. After compressed air purification system the waste gas, water, oil, dust will be filted and exhausted You can connect with hospital tube or another pipes to use directly, but also you can fill into cylinders. If so, we can supply oxygen booster and filling manifold

LIQUID NITROGEN GENERATOR
Our medium size oxygen/nitrogen plants are designed and manufactured with the latest cryogenic air separation technology, which is
trusted as the most efficient technology for high rate of gas generation with high purity. We have world-class engineering expertise enabling us to build industrial gas systems in compliance with internationally approved manufacturing and designing standards.


VPSA OXYGEN GENERATOR
VPSA oxygen generator uses zeolite molecular sieve as the adsorbent, and uses the principle of pressure adsorption and
decompression desorption to adsorb and release oxygen from the air, thereby separating oxygen from the automatic equipment. N2 molecules have a faster diffusion rate in the micropores of zeolite molecular sieve, and O2 molecules have a slower diffusion rate.


CRYOGENIC OXYGEN PLANT
The basic principle of air separation is use cryogenic rectification to condense air into liquid and separate the air according to the
evaporation temperature of each component. The whole device can be controlled by DCS or PLC system.Pic shown is the key part of this system that is separation column( Cold box).

GAS COMPRESSOR
The equipment does not need to add lubricating oil, and the exhaust gas does not contain oil and oil vapor, so it can be protected from pollution, eliminating the need for complex filtration and purification systems, saving equipment costs and maintenance
costs, and has significant features such as safety, reliability, and easy operation.

OXYGEN CONCENTRATOR
Oxygen Production is 5-60L/min, using pressure swing adsorption technology, purity is ≥90% for household and hospital use. The product is mainly composed of compressor, zeolite molecular sieve, transfer switch,control panel, display board, flow meter, condenser, automatic drain and other components. If you need to add automization components (automization cup, connecting pipe, etc.).
Company Profile
Why Choose Us
Packing & Delivery
FAQ
Q1: Are you a trading company or manufacturer?
A:We are a manufacturer.
Q2: What is your term of payment? A: 30%T/T in advance and balance before shipment. Q3: How long is your delivery time?
A: Depending on what type of machine you are purchased, normally 5 to 10 working days.
Q4: What is your product quality assurance policy? A:We offer a warranty period of 1 year, free lifetime technology support.
Q5: Do you offer OEM/ODM service?
A: Yes.
Q6: Does your product used or new? RTS product or customized product?
A:Our machine is new unit, and following your specific require to design and make it.
