Home /Products/Nitrogen Gas Generators/PSA 99 nitrogen generator psa gas nitrogen generator psa industrial nitrogen generator product

PSA 99 nitrogen generator psa gas nitrogen generator psa industrial nitrogen generator product

1.0 Sets
MOQ
PSA 99 nitrogen generator psa gas nitrogen generator psa industrial nitrogen generator product
Features Gallery Product Description Request A Quote
Features
Specifications
Applicable Industries: Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Energy & Mining
Showroom Location: Egypt, Turkey, United States, Viet Nam, Philippines, Peru, Pakistan, Russia, Morocco, South Korea, UAE, Algeria, Bangladesh, South Africa, Kazakhstan, Uzbekistan
Condition: New
Usage: Nitrogen
Production Rate: 3-3000Nm3/h
Voltage: 220V/380V
Weight: 3500 KG
Dimension(L*W*H): 3500x2200x2400MM
Warranty: 1 Year
Key Selling Points: Sustainable
Marketing Type: Hot Product 2019
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Warranty Of Core Components: More Than 10 Years
Core Components: Pressure Vessel
Name: PSA Nitrogen Generator
Model: CBN
Capacity: 5-3000Nm3/h
Purity: 95-99.999%
Pressure: 0.1-0.8Mpa
HS Code: 8419609090
Dew Point: ≤-40℃
After-sales Service Provided: Online Support
Technology: Pressure Swing Adsorbtion (PSA)
Type: Skid Mounted
Basic Infomation
Model Number: CBN
Payment & Shipping Terms
Packaging Details: Standard export packing
Supply Ability: 50 Set/Sets per Quarter High Purity Nitrogen Making Machine For Food Packing/Injection
Product Description
Product Overview

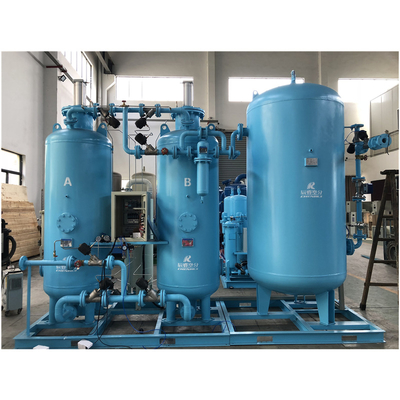

PSA Nitrogen generator principle

PSA nitrogen generator is an automatic equipment which separate nitrogen from air. According
to the performance of molecular sieve, its adsorption when pressure risen and desorption when pressure loose. Molecular sieve’s surface and inner surface and interior are filled with micro pores. Oxygen molecule has a faster diffusion rate of molecular sieve and nitrogen molecules has a slower diffusion rate. Nitrogen molecules are enriched in the end from the absorption tower.
Nitrogen generator is constructed according to the principle of operation pressure swing adsorption and it compressed by two absorption towers filled up with molecular sieve. The two absorption towers are crossed by compressed air (previously purified oil, water,dust, etc) . While one of the absorption tower produce nitrogen, the other one release oxygen gas to atmosphere. The process comes in cycle way. The generator is controlled by PLC.
Perfect process design get high performance. Unique vacuum molecular sieve filling system and impacted technology increase the life of molecular sieve. Skid-mounted structure makes installation and transportation more convenient. With DCS controller system and remote output and control system. High automatic, unmanned operation.
PRODUCT SPECIFICATIONS
No
Item
Data
1
Nitrogen Capacity
3-3000Nm3/h
2
Nitrogen Purity
95-99.999%
3
Nitrogen outlet pressure
0.1-0.8 MPa (1-8Bar) adjustable or according to user’s requirement
FEATURES AT A GLANCE

1.Full Automation

2. Lower Space Requirement

3. Fast Start-up

4. High Reliability

5. Molecular Sieves life

6.Adjustable
CBN-1000C
CBN-350C
CBN-200C
Successful Project



SIMILAR PRODUCTS
Company Profile
SALES AND SERVICE NETWORK
FAQ
Q1：Are you manufacturer or Trade Company?
We are the manufacturer of Oxygen Generator, nitrogen generator and liquid nitrogen generator, founded in 2010.
Q2: What's the order nitrogen generator process?
a. Inquiry---provide us all clear requirements.
b. Quotation---official quotation form with all clear specifications.
c. Contract confirmation---provide correct contract details.
d. Payment terms
e. Production
f. Shipping
g. Installation and commissioning
Q3: What terms of payment you use?
T/T, L/C etc.
Q4: What certification do you have?
we have ISO9001, ISO45001, ISO14001 and many patent certifications.
Q5: How to get a prompt quotation of Oxygen Generator?
When you send the inquiry to us, pls kindly send it with below technical information.
1) N2 capacity: _____Nm3/hr( or How many cylinders do you want to fill per day(24hours))
2) N2 purity: _____%
3) N2 discharge pressure: _____Bar
4) Voltages and Frequency : ______V/PH/HZ
5) Application:
6) Project Location
If you have any question, please do not hesitate to contact us.
Thank you!
